SSD1306 OLED Display – Display OLED com I2C – Como ligar?

Escrito por: ­ 19 de set de 2017 ­ 3.477 views

Neste artigo veremos:

O que você vai precisar

1 Display OLED de qualquer resolução (usamos o 128×64) com I2C – caso o seu seja outro modifique o arquivo de acordo
Biblioteca Adafruit_SSD1306 que poderá ser encontrada aqui
Fios (jumpers)

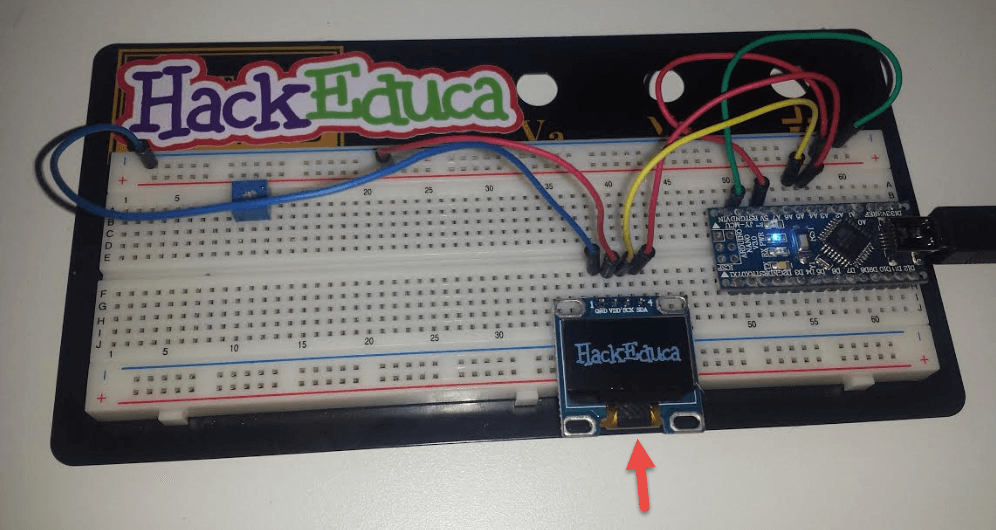

A Conexão

A conexão com os módulos I2C ocorre de maneira muito simples.
Vcc – 5v do Arduino
Gnd – Gns do Arduino
SDA (Dados) – na maioria dos Arduinos (A4), no Mega (20), no Leonardo (D2)
SCK (Clock) – na maioria dos Arduinos (A5), no Mega (21), no Leonardo (D3)

A programação

Scanner

Para saber qual é o seu display I2C use o programa abaixo.

// from https://playground.arduino.cc/Main/I2cScanner?action=sourceblock&num=1
#include <Wire.h>

void setup()
{
  Wire.begin();
  Serial.begin(9600);
  while (!Serial);
  Serial.println("\nI2C Scanner");
}

void loop()
{
  byte error, address;
  int nDevices;
  Serial.println("Scaneando...");
  nDevices = 0;
  for(address = 1; address < 127; address++ )
  {
    Wire.beginTransmission(address);
    error = Wire.endTransmission();
    if (error == 0)
    {
      Serial.print("Dispositivo I2C encontrado no endereço 0x");
      if (address<16)
        Serial.print("0");
      Serial.print(address,HEX);
      Serial.println("  !");

      nDevices++;
    }
    else if (error==4)
    {
      Serial.print("Erro desconhecido no endereço 0x");
      if (address<16)
        Serial.print("0");
      Serial.println(address,HEX);
    }
  }
  if (nDevices == 0)
    Serial.println("Não encontramos nenhum dispositivo I2C\n");
  else
    Serial.println("pronto\n");
  delay(5000);
}

Programa

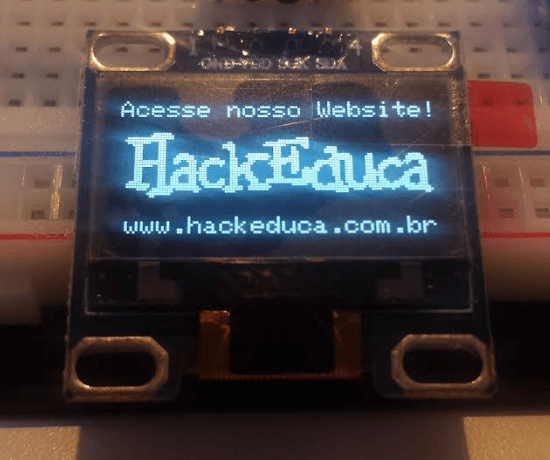

Para mostrar uma imagem

// Este exemplo foi criado por Edson Sidnei Sobreira
// Domínio Público

#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define OLED_RESET 4
Adafruit_SSD1306 display(OLED_RESET);

const unsigned char HackEduca_logo [] PROGMEM = {
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x01, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x03, 0xFE, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x07, 0xFF, 0xFE, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x0F, 0xFF, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x07, 0xFC, 0x70, 0x00, 0x00, 0x0C, 0x00, 0x1F, 0xFF, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x01, 0xE0, 0x70, 0x00, 0x00, 0x3E, 0x00, 0x3F, 0xE0, 0x70, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0xE0, 0x70, 0x00, 0x00, 0x3E, 0x00, 0x03, 0x86, 0x30, 0x1E, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0xE0, 0x70, 0x00, 0x00, 0x0E, 0x00, 0x03, 0x86, 0x00, 0x3E, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0xE0, 0x70, 0x00, 0x00, 0x06, 0x00, 0x03, 0x87, 0x00, 0x3E, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0xE0, 0x70, 0x78, 0x00, 0x06, 0x0F, 0xF3, 0x87, 0x00, 0x07, 0xF0, 0x18, 0x00, 0x1F, 0x00,
0x00, 0xE0, 0x70, 0xFE, 0x00, 0x06, 0x1F, 0xFB, 0x8F, 0x00, 0x07, 0xF8, 0x38, 0x00, 0x3F, 0x80,
0x00, 0xE0, 0x71, 0xFE, 0x07, 0x87, 0x0F, 0xF3, 0xFF, 0x00, 0x0F, 0xF8, 0x38, 0x1E, 0x3F, 0x80,
0x00, 0xFF, 0xF1, 0xCF, 0x1F, 0xE7, 0x0E, 0x07, 0xFF, 0x01, 0xFF, 0x38, 0x38, 0x7F, 0x71, 0xC0,
0x00, 0xFF, 0xF1, 0x87, 0x3F, 0xE7, 0x3C, 0x0F, 0xE7, 0x03, 0xFF, 0x38, 0x38, 0xFF, 0xA1, 0xC0,
0x00, 0xFE, 0x70, 0x07, 0x38, 0x47, 0x78, 0x07, 0x87, 0x03, 0x8F, 0x38, 0x39, 0xE3, 0x00, 0xC0,
0x00, 0xE0, 0x70, 0x3F, 0x70, 0x07, 0xF8, 0x03, 0x87, 0x37, 0x07, 0x38, 0x39, 0xC0, 0x07, 0xC0,
0x00, 0xE0, 0x70, 0xFF, 0x70, 0x07, 0xF8, 0x03, 0x87, 0x7F, 0x07, 0x38, 0x3D, 0x80, 0x1F, 0xC0,
0x00, 0xE0, 0x71, 0xFF, 0xF0, 0x07, 0xFC, 0x03, 0x86, 0x7E, 0x07, 0x38, 0x3F, 0x80, 0x7F, 0xC0,
0x00, 0xE0, 0x71, 0xC7, 0x70, 0x07, 0x9C, 0x03, 0x80, 0x7E, 0x07, 0x38, 0x3F, 0x80, 0x71, 0xC0,
0x00, 0xE0, 0x73, 0x87, 0x70, 0x07, 0x1E, 0x03, 0xC0, 0x7E, 0x03, 0x38, 0x7D, 0x80, 0xE1, 0xC0,
0x00, 0xE0, 0x73, 0x87, 0x70, 0x67, 0x0F, 0x1F, 0xFF, 0xFE, 0x03, 0x38, 0x7D, 0xC1, 0xE1, 0xC0,
0x03, 0xE0, 0x73, 0x87, 0x38, 0xE7, 0x07, 0x1F, 0xFF, 0xFE, 0x03, 0xBC, 0x7D, 0xE7, 0xE1, 0xC0,
0x07, 0xFC, 0x73, 0xFF, 0x3F, 0xE7, 0x07, 0xF0, 0x07, 0xE7, 0x9F, 0x9F, 0xFF, 0xFF, 0xFB, 0xC0,
0x07, 0xFC, 0x7F, 0xFF, 0x9F, 0xDF, 0xCF, 0xF8, 0x00, 0x07, 0xFF, 0xFF, 0xDF, 0xFE, 0x7F, 0xE0,
0x00, 0x79, 0xFE, 0xFF, 0xC0, 0x3F, 0xCF, 0xF0, 0x00, 0x03, 0xFF, 0xE7, 0x8F, 0x08, 0x3F, 0xF0,
0x00, 0x03, 0xFE, 0x01, 0x80, 0x1E, 0x00, 0x00, 0x00, 0x00, 0x03, 0xE0, 0x00, 0x00, 0x00, 0x60,
0x00, 0x07, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};
void setup()   {
  display.begin(SSD1306_SWITCHCAPVCC, 0x3c);
  display.clearDisplay();
  display.drawBitmap(0, 0, HackEduca_logo, 128, 64, 1);

  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.setCursor(2,5);
  display.println("Acesse nosso Website!");

  display.setCursor(5,55);
  display.print("www.hackeduca.com.br");
  display.display();

}

void loop() {

}

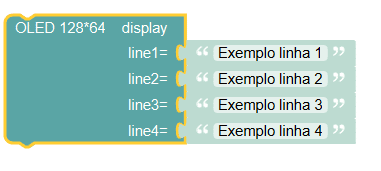

Mixly

print
Creative Commons License
This work by Edson Sobreira is licensed under a Creative Commons Attribution 4.0 International
